In the fast-paced world of precast concrete manufacturing, understanding the distinction between a finished BIM model and a production-ready panel is vital. A common misconception is that once a BIM model is complete, it's ready for production. However, in reality, this is far from true.

The Dangerous Meaning of “Finished”

When a modeler marks a panel as "finished," it might still have pending connections, unapproved changes, or incomplete information. This misconception can lead to severe bottlenecks during production. Therefore, it's crucial to establish clear criteria that distinguish a finished model from a production-ready panel.

Why Percentage Complete is Misleading

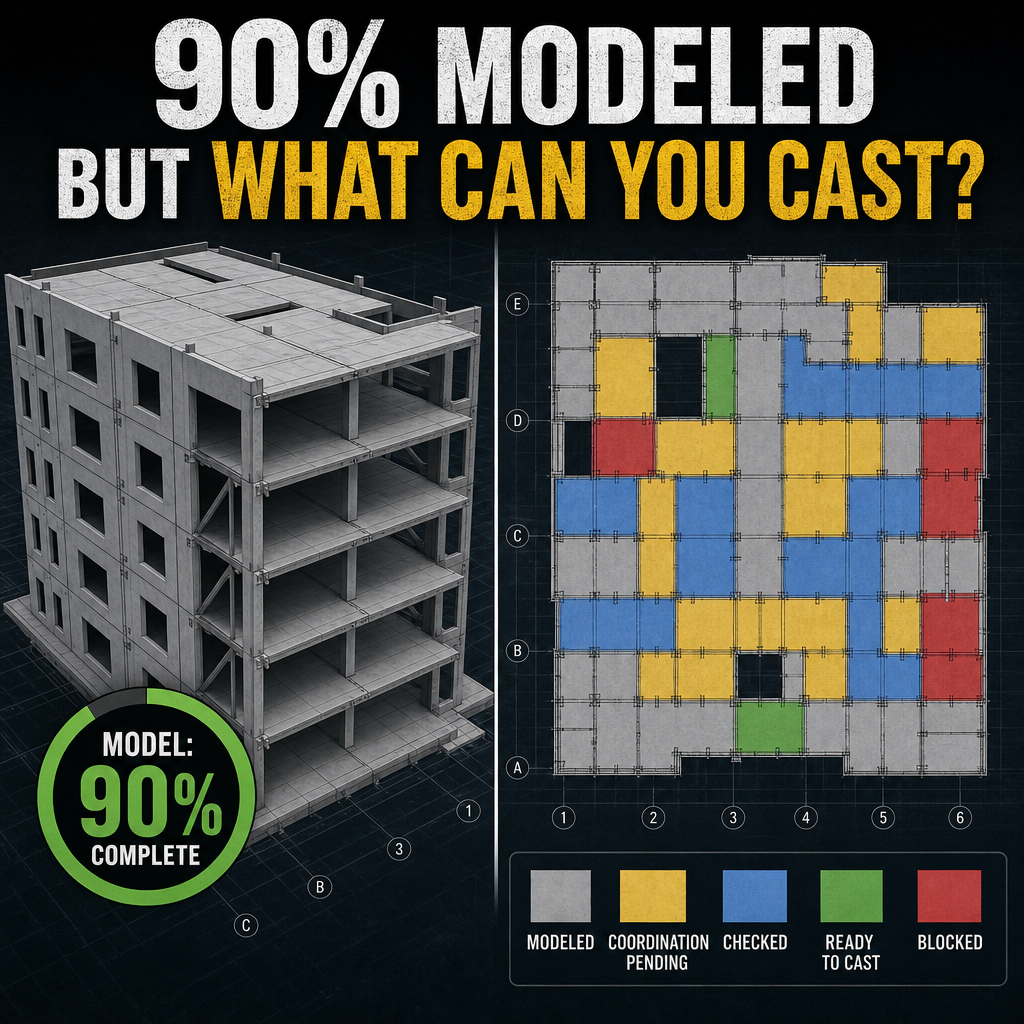

Labeling a model as "90% complete" often misleads teams about its actual production readiness. This percentage doesn't convey which aspects are ready for fabrication. Thus, relying solely on progress percentages can create confusion and delays.

Defining Production Readiness at Element Level

Elements within a BIM model should have precise readiness statuses, such as:

• Modeled: Initial design completed.
• Internally Checked: Initial quality assurance conducted.
• Coordinated: Aligned with various teams and stakeholders.
• Approved: Validated for compliance with project specifications.
• Shop Drawings Issued: Detailed documents for manufacturing prepared.
• Released for Production: Authorized for fabrication.

Quality Checks Must Be Part of the Status

Each status isn't merely a label; it requires robust quality checks, covering geometry, inserts, connections, dimensions, lifting, transport, and erection requirements. These validations ensure accuracy and prevent costly errors down the line.

What Production Gains

Implementing this thorough process offers significant advantages:

• Less Interpretation: Clear statuses reduce miscommunication.
• Fewer Interruptions: Minimizes disruptions during fabrication.
• Accurate Fabrication: Avoids producing panels with outdated information.
• Improved Planning: Enhances mold and sequencing strategies.
• Traceability: Facilitates efficient change management.

Production teams do not need models that merely look complete but require elements that are demonstrably ready to cast. By ensuring robust verification and quality control, manufacturers can significantly improve efficiency and reduce errors. Biminglabs is committed to aiding manufacturers with these transitions through our innovative methods, ensuring every element's status is meticulously recorded and verified.

For further information and assistance on effectively transitioning from BIM modeling to production readiness, feel free to contact us.
